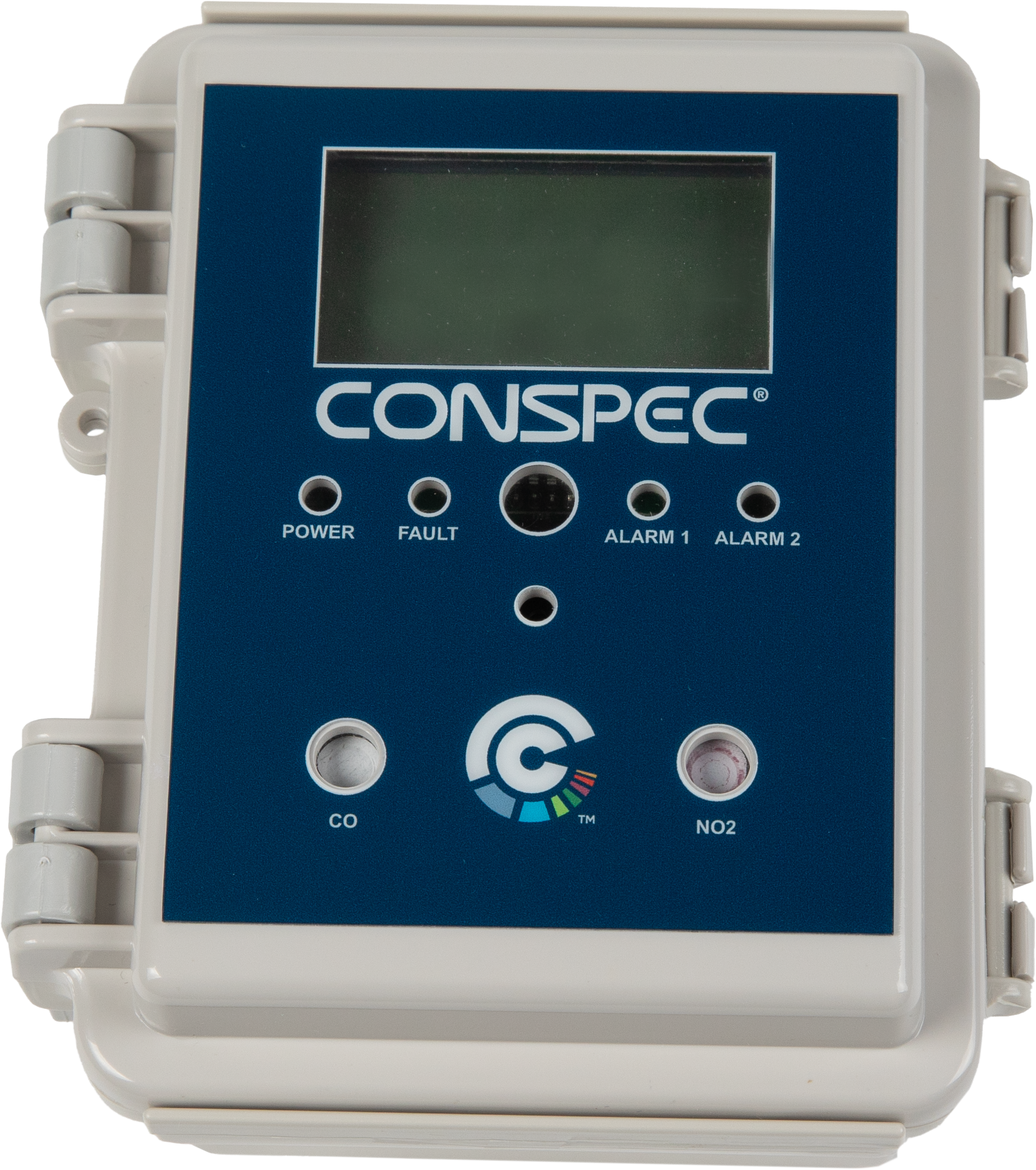

OPTIO PGM - Parking Garage Monitor

Conspec’s parking garage Carbon Monoxide & Nitrogen Dioxide detector system initiates exhaust fans and/or alarms when Carbon Monoxide and or Nitrogen Dioxide levels become unsafe. Easy installation and setup make this detector the preferred choice for CO & NO2 detection in parking garages.
DESCRIPTION

CONSPEC’s Optio PGM ventilation fan controller is designated for parking areas where Carbon Monoxide & Nitrogen Dioxide gases must be continually ventilated or have a gas detection device installed. Before an unsafe level of Carbon Monoxide and or Nitrogen Dioxide is reached, the detector will signal ventilation fans to cycle and operate until the atmosphere in the area has returned to normal.

Multiple detectors can be installed and easily connected without the need for a central panel/controller by a simple series connection of the detectors. LED indicator lights clearly show the status of the detector, and a large LCD display continually shows the CO & NO2 levels being monitored. In the event of a power loss or malfunction, the Optio PGM activates the ventilation system.
Electricity and heating expenses can be dramatically reduced due to the ventilation fans operating only when needed as opposed to continuously running. Energy savings of up to 85% can be achieved and in most cases, the return on the cost of the system is realized in one year or less! Contact Conspec Controls for the cost savings you can achieve.
  • Carbon Monoxide CO
  • Nitrogen Dioxide NO2

Long sensor Life
Self Diagnostic
Automatic reset after power loss
Two (2) Onboard Relay Contacts
Two (2) 4-20mA Outputs (Optional)
Onboard 85db Alarm
Bright LCD Display
Nitrogen Dioxide sensor can be internal or remotely located up to 100ft
Compliant to California Title 24 (pending)
UL61010-1 Approved (pending)
UL2075 Approved (pending)

Enclosed Parking Garages
Vehicle Maintenance Facilities
Factories / Warehouses
Bus Terminals & Depots
Tunnels
Car Dealerships
Fire/Police Stations
Service Bays

  • PVC Control Panel
  • Horns and Strobes
  • Calibration Kits
  • Replacement Sensor CO
  • Replacement Sensor NO2
  • Power Supply
  • IR Remote
